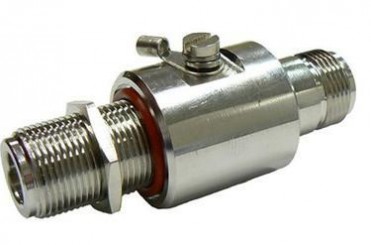

N型避雷器N-KKY50欧天馈防雷器 GPS天线避雷器,厂家

N型避雷器N-KKY50欧天馈防雷器 GPS天线避雷器,厂家

避雷器

LIGHTNING ARRESTER

    闪电雷击对无线电设备意味着一场考验。在几微秒的瞬间，浪涌电压高达几十千伏/ 米，整个系统将承受巨大的负载，后果可能损坏设备。避雷器是在建设机站时采用的**保护性、预防性的附件。正确的选用可确保系统**运作。

    Lightning strike by lightning means a calamity to the radio equipment. At the severalty microseconds twinkling of an eye, well up to the dozens ofth kilovolt of at voltage at waves /rice, bear enormous load of whole systems, May damage the equipment in consequence. It is with lightning arrester must protecting nature, preventative enclosure fully. Correct exertion, guarantee system high-efficient operation.

材料与涂覆  MATERIAL & PLATING

壳体       shell             黄铜        brass     镀银或三元合金 silver or CuSnZn3 plated

插针       contact pin       黄铜        brass     镀硬金          gold plated

弹性接触件elastic contact    铍青铜      beryllium 镀硬金          gold plated

绝缘体     insulator         聚四氟乙烯 PTFE

其它导体  other metal parts 黄铜        brass     镀银            silver plated

o型密封件 O-ring sealing     硅橡胶 6146 silastic

气体管式避雷器GAS TUBE DISCHARGE TYPES

利用特殊的气体管放电原理来压制过高电压。

Utilizing special gas to be in charge of discharging, the principle suppress the too high voltage.

当浪涌电压大于气体管的规定时，气体管会将过高的电压放电接地，保护系统器材。

When the wave wells up the regulation that the voltage is greater than the gas and in charge of, gas in charge of discharge earth connection too high voltage, Protect the apparatus systematically.

正常情况下，不会影响系统的工作

Under the normal situation, will not influence the systematic work

主要技术特性  TECHNICAL CHARACTERISTICS

频率范围      Frequency range             0 ～ 2.5   GHz

特性阻抗      Impedance                   50Ω

电压驻波比    VSWR                        ≤1.06/1.5 GHz

插入损耗      Insertion loss              ≤0.1 dB/1.5 GHz

额定直流电压  Nominal D.C Voltage         145V/230V/350V/470V

1/4波长式避雷器   1/4 WAVE LENGTH TYPES

利用1/4 波长原理，当有高压干扰时，避雷器会自动短路，系统正常工作。

Utilize the principle of wavelength 1/4, when there is high pressure to interfere, the lightning conductor will hold up automatically , The normal work of the system.

预先设计定在某一频段工作。

Design and fixed on the work of a certain frequency channel in advance.

可以重复使用, 无特殊损坏，无需更换。

It can reuse and has not damaged specially, does not need to change.

主要技术特性TECHNICAL CHARACTERISTICS

频率范围     Frequency range             800 ～ 970   MHz

                                         1700～ 1900  MHz

特性阻抗     Impedance                   50         ohm

电压驻波比   VSWR                        ≤1.15

插入损耗     Insertion loss              ≤0.1  dB

三阶交调     Intermodulation 3rd  order

       在925MHz/ 43dBm 950MHz/ 43dBm     ≤-170  dBc

       在1825MHz/ 43dBm 1875MHz/ 43dBm   ≤-160  dBc
